Reference : 1.2688
EAN : 8427648499706
Official warranty : 2 years for tools and 1 year for batteries. For more information see our page Guarantee

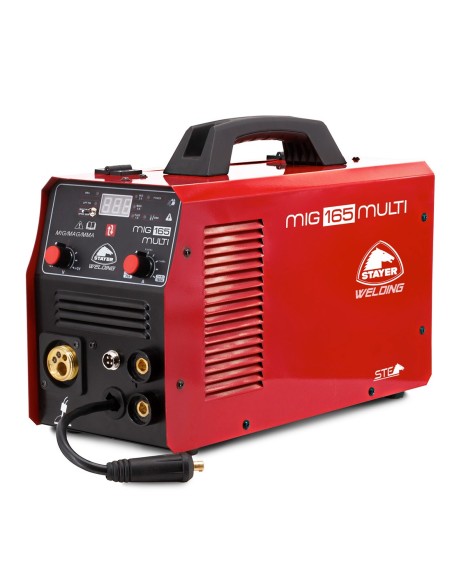

Welder STAYER MIG 165 MULTI
- - STAYER MIG MULTI range, with EUROTORCH torch connection and power of 160-170 amps.
- - Designed for MIG, TIG and MMA processes of the highest quality.
- - Easy configuration in MIG mode, possibility to use gas or gasless hollow wire.
- - With gas, connect torch return to positive (+) terminal.
- - With gas, connect torch return to negative (-) terminal.
- - Efficient and simple wire welding adjustment with only two buttons: one for control including speed mode and one for voltage. A switch enables switching between wire (MIG) and electrode (MMA) and TIG welding modes.
- - Over temperature and over current protection.
- - Complete equipment including torches, sheave, ground wires and electrode holders.
- - State-of-the-art microprocessor-controlled IGBT technology capable of delivering up to 170 amps (MIG 170).
- - Transportable and robust: Compact, low weight due to the use of fully Inverter power circuitry. Oversized, high quality components.
- - MIG 160 for coils from 0.5 to 1Kg.
- - MIG165 / 170 is for coils from 0.5 to 5Kg.
- - Prepared for use with stabilised generator, given its voltage input range of +/-17%.
- - Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
Welder STAYER MIG 165 MULTI
- Power: 160 A
- Voltage: 230 V
- Duty cycle factor: 60 %.
- Coated electrodes: 1.6 - 4.0 mm
- Wire thickness: 0.6 - 0.8 - 0.9 mm
- Coil weight: 0.5 - 1 - 5 kg
- Use with generator: 5 - 7 KVA / 230V ±17%.
- Dimensions: 42 x 31 x 18 cm
- Weight: 13 kg
- DINSE clamp: 3/8’ (10 - 25) ø
- Welder STAYER MIG 165 MULTI
- Power supply cable: 2m x 2.5mm².
- Earth cable with clamp: 1.5m x 16mm².
- Electrode cable with clamp: Pure copper. 2.5m x 16mm².
- Internal wire feeder 0.5 to 5kg
- Torch wire 15AK / 3m
