- Reduced price
Reference : 075.005A
EAN : 4021563672714
Official warranty : 4 years for tools. For more information see our page Guarantee

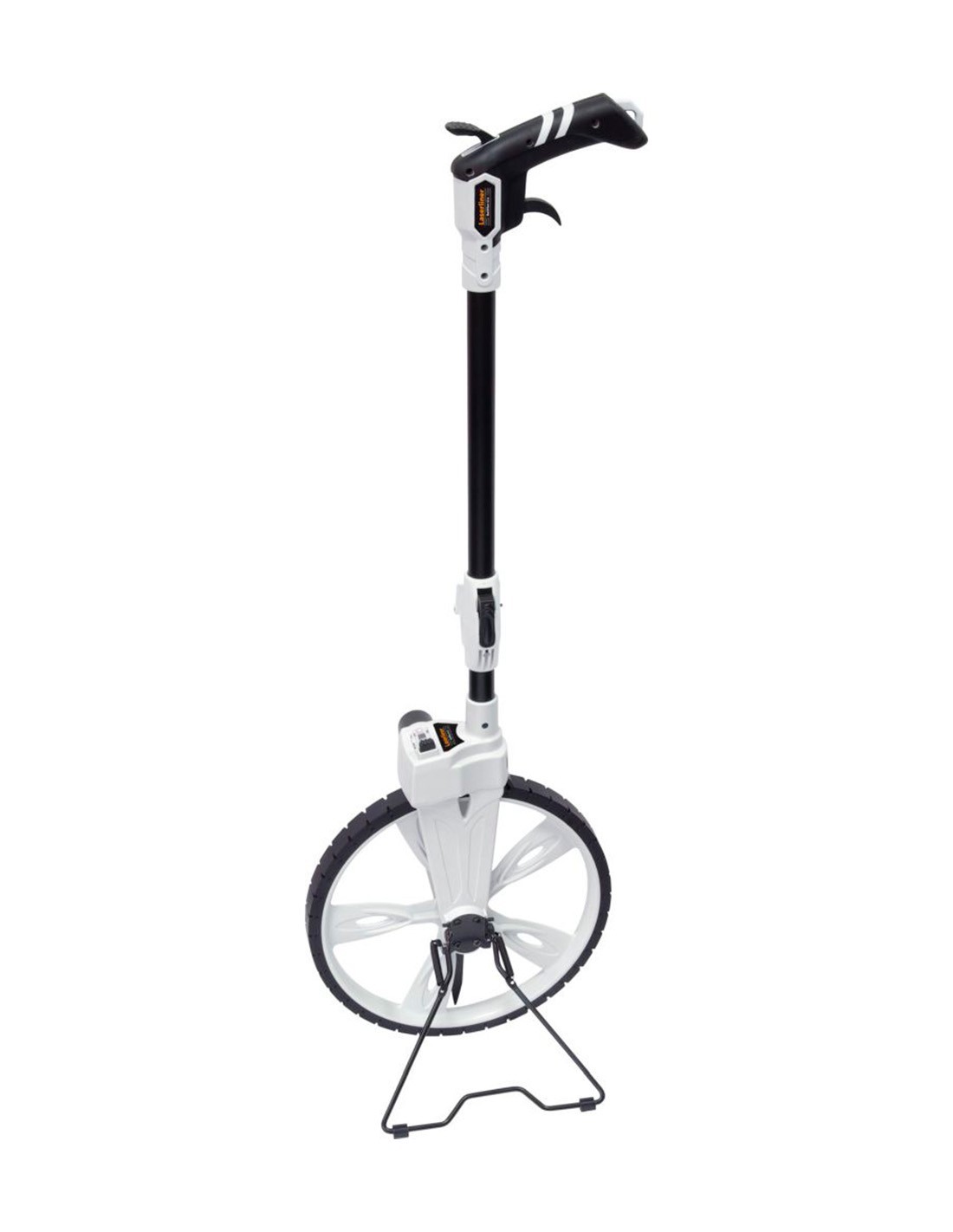

LASERLINER RollPilot S12 Measuring Wheel 075.005A
- - Mechanical measuring wheel for measuring distances on straight lines and curves.
- - Accurate measurements up to 9,999.9 m with metre readout.

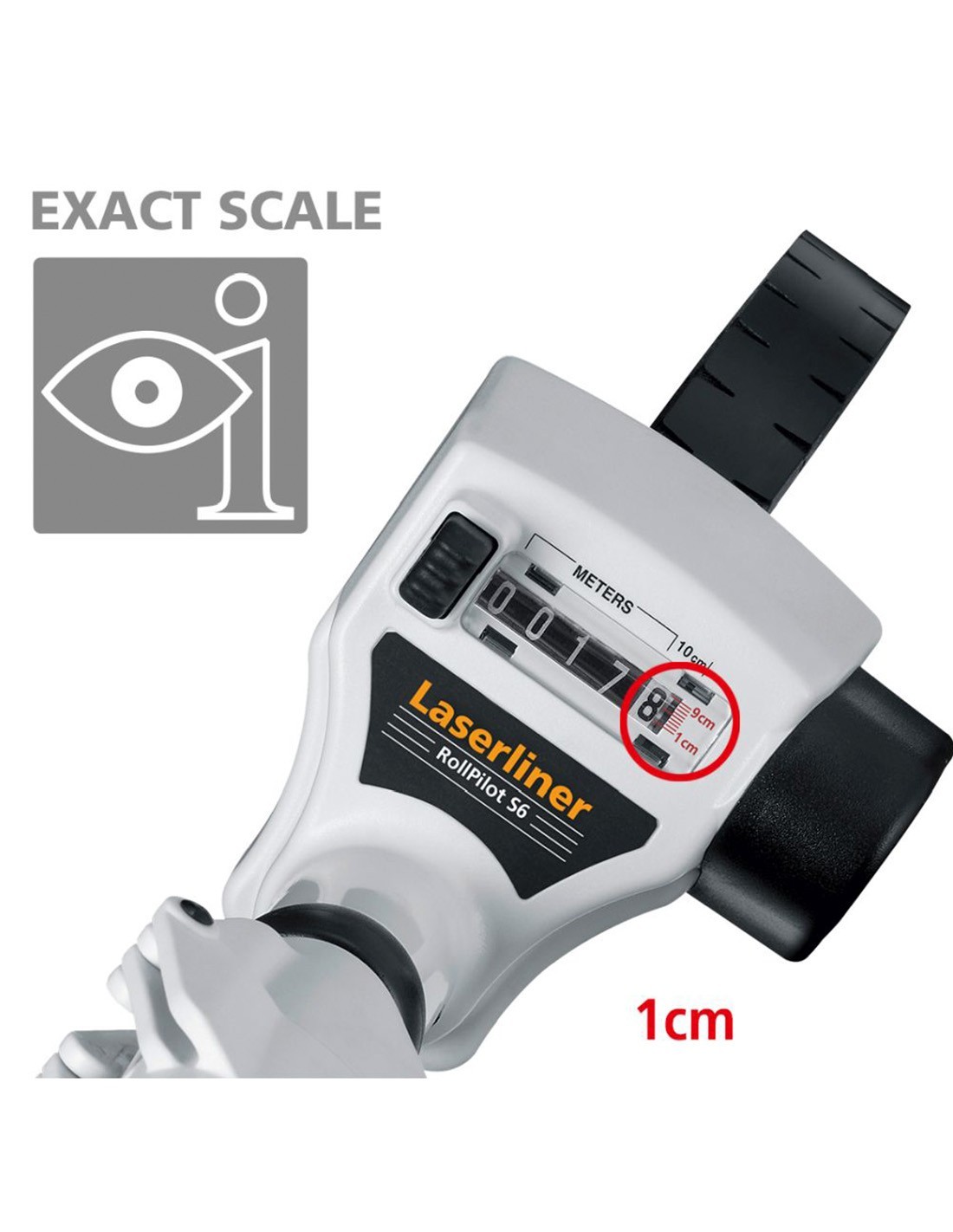

- - Measured value shown on an easy-to-read mechanical counter with additional fine scale.

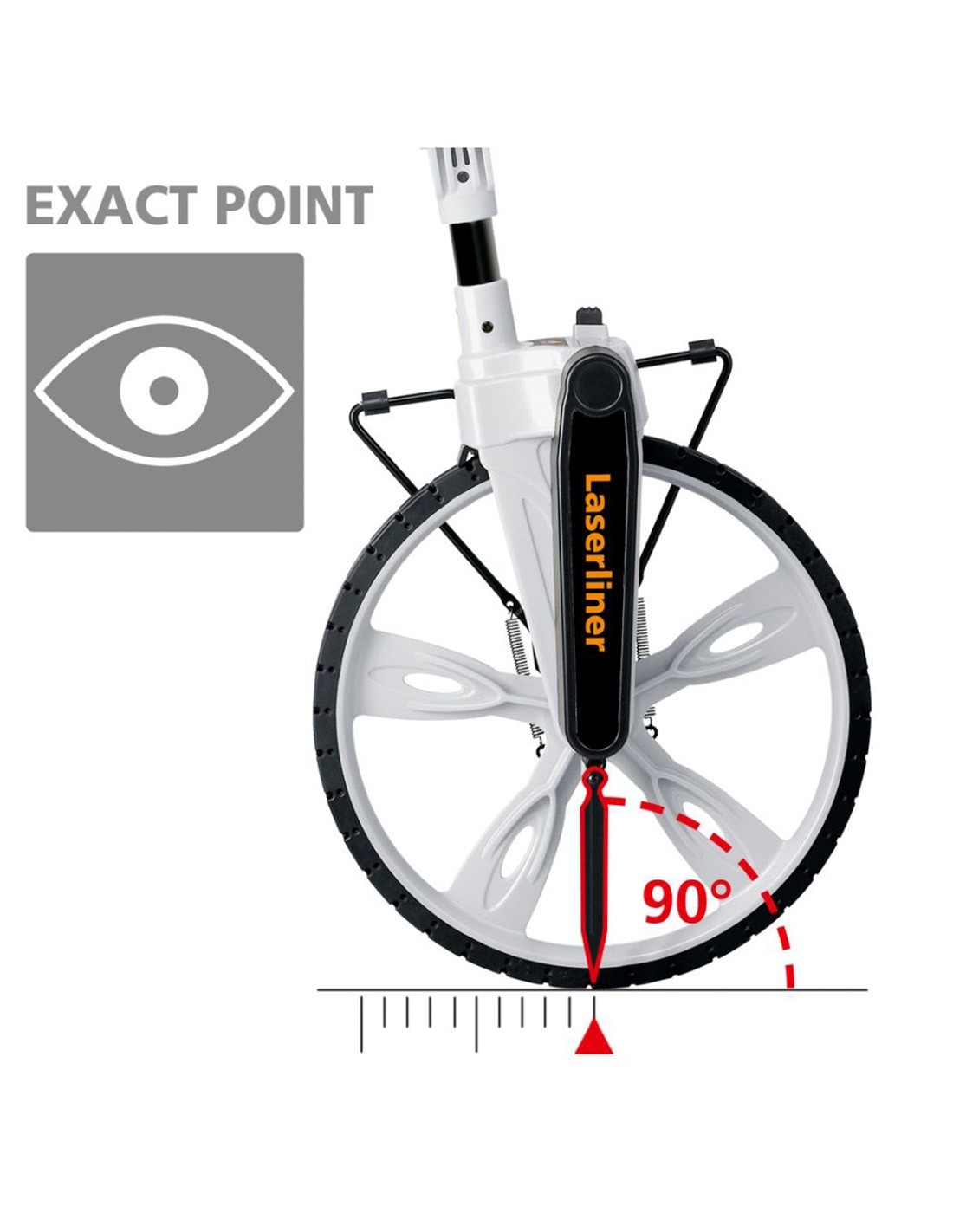

- - Moving pointer for precise start and end position indication.
- - Rolling forwards adds to the measured value; rolling backwards subtracts.

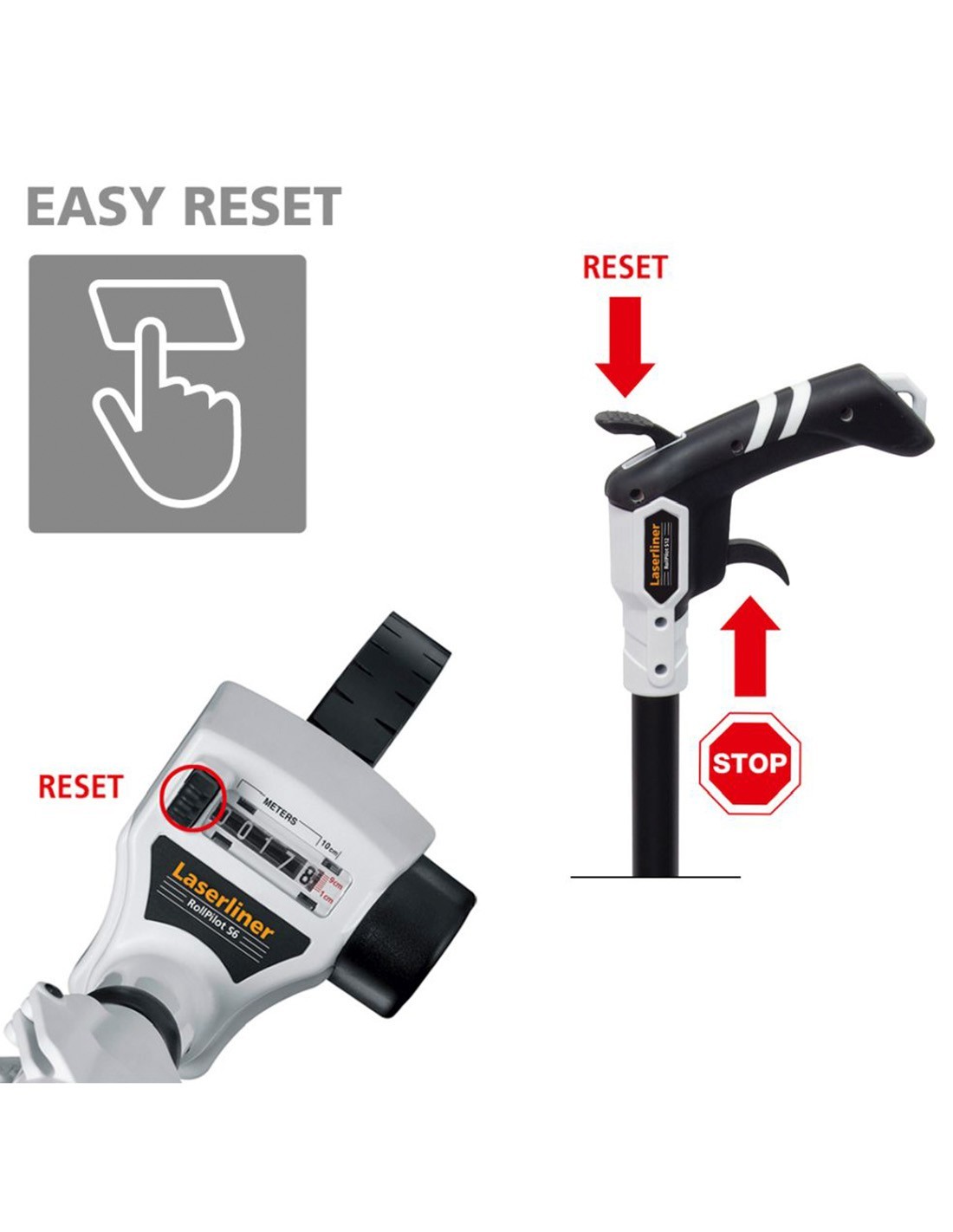

- - Easy-to-access brake and zero setting directly on the handle.
- - Folding design for easy transport and storage.
- - Non-wearing cardanic scale drive.

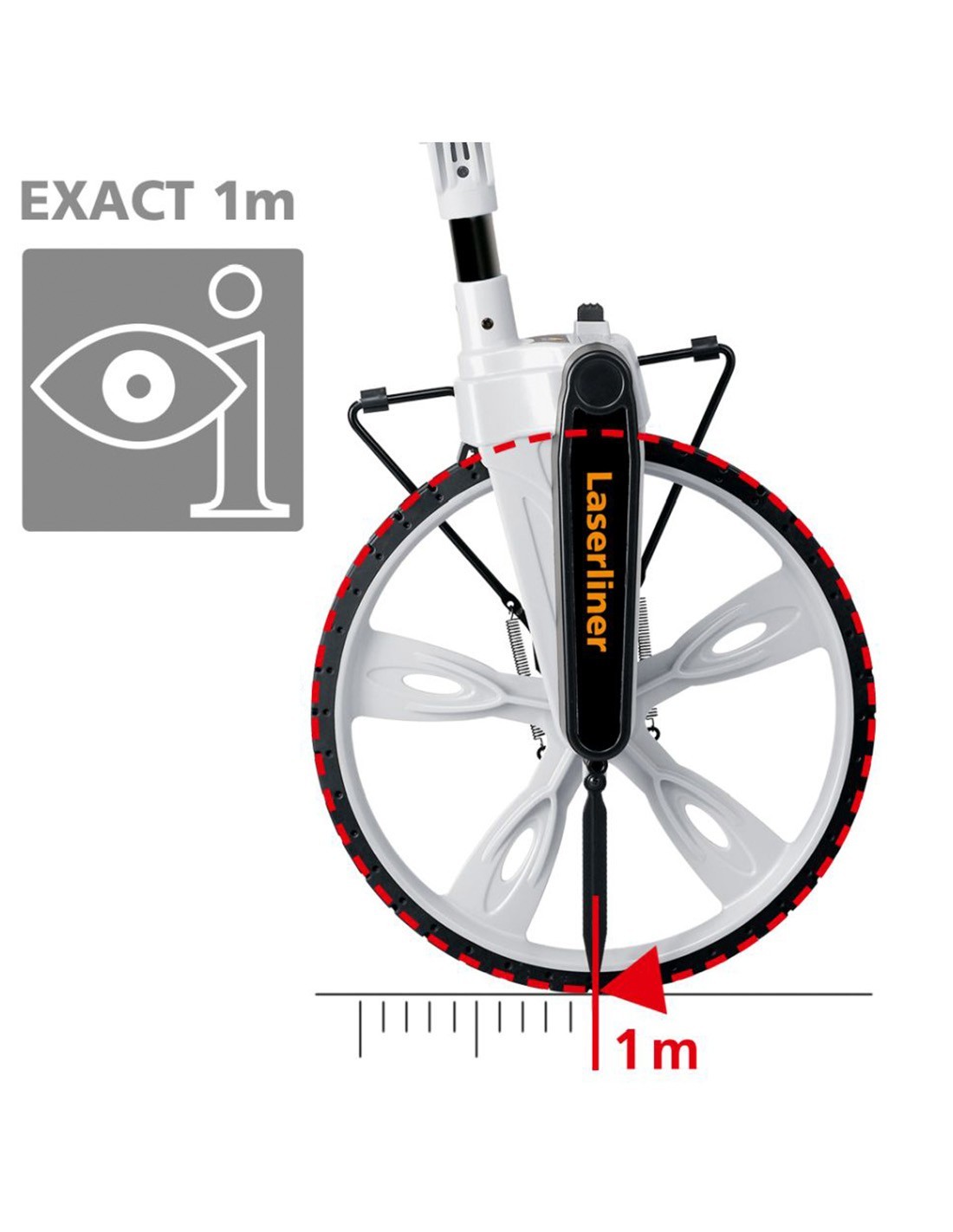

- - Mechanical measuring wheel with 1-metre circumference.
LASERLINER RollPilot S12 Measuring Wheel 075.005A
- Type: Mechanical measuring wheel
- Application: Distance measurement on straight lines and curves
- Distance: Yes
- Measuring point display: Yes
- Set counter to zero: Yes
- Lock measuring wheel: Yes
- Point/wall measurement: Yes
- Parking position: Yes
- Typical precision: ± 1 mm/m
- Accuracy: ± 0.1 %
- Measuring range: 0 - 9,999.9 m
- Measuring wheel radius: 159 mm
- Measuring wheel circumference: 1000 mm
- Units: m
- Operating conditions: -20 °C ... 80 °C
- Maximum humidity: 80 % RH, non-condensing
- Maximum working altitude: 4000 m
- Dimensions: 318 x 1000 x 140 mm
- Weight: 1800 g without accessories

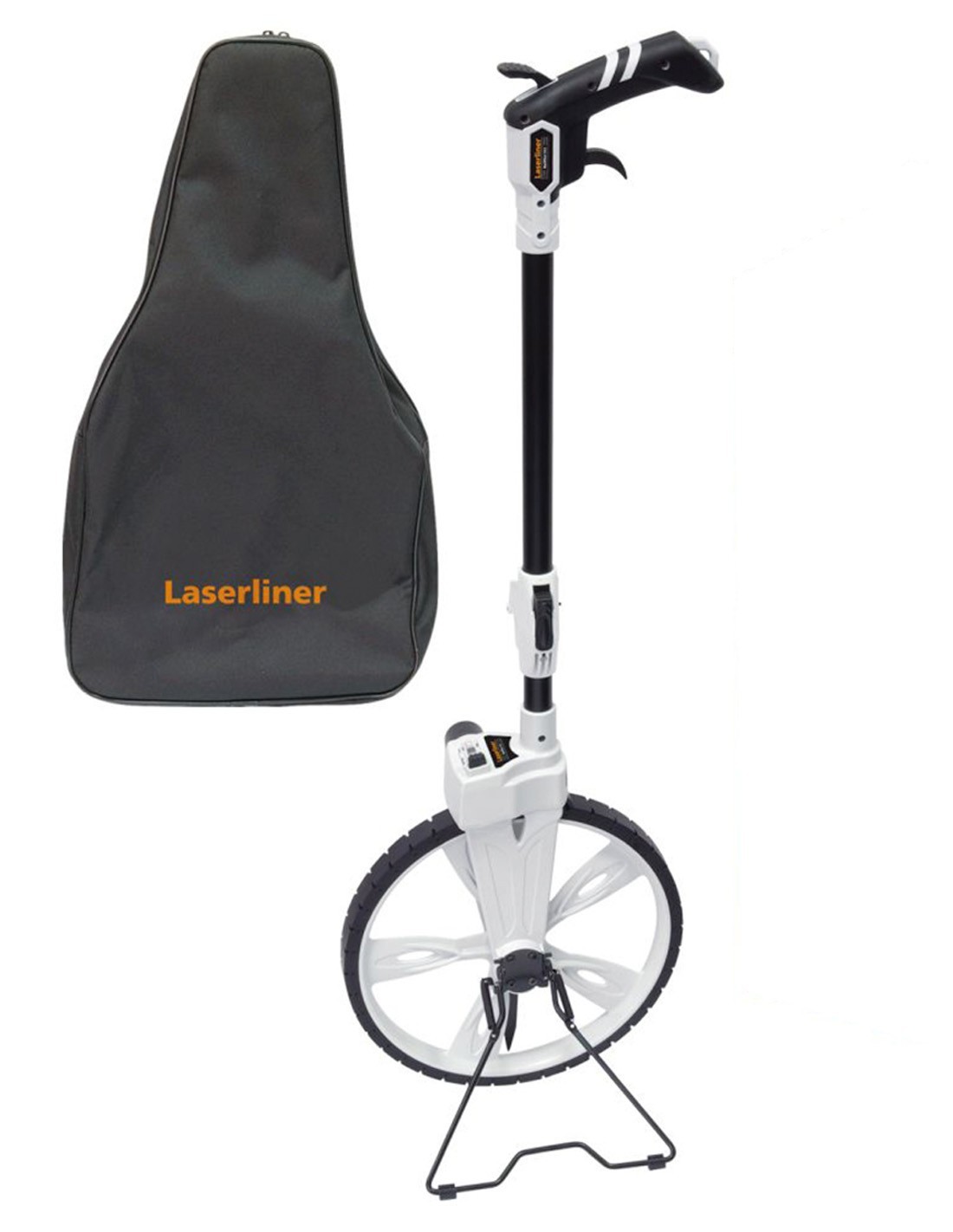

- LASERLINER RollPilot S12 measuring wheel
- Soft transport bag
