LASERLINER MasterPlane-Laser 3G Plus Green 3D Laser 031.400A
Reference : 031.400A
EAN : 4021563727179
Official warranty : 4 years for tools. For more information see our page Guarantee
LASERLINER MasterPlane-Laser 3G Plus Green 3D Laser 031.400A
- - Highly visible three-dimensional laser projecting one horizontal and two vertical 360° laser circles for precise alignment throughout the entire room.
- - Accurate horizontal and vertical levelling for professional installation, construction and finishing work.
- - Green laser technology provides excellent visibility of the laser lines.

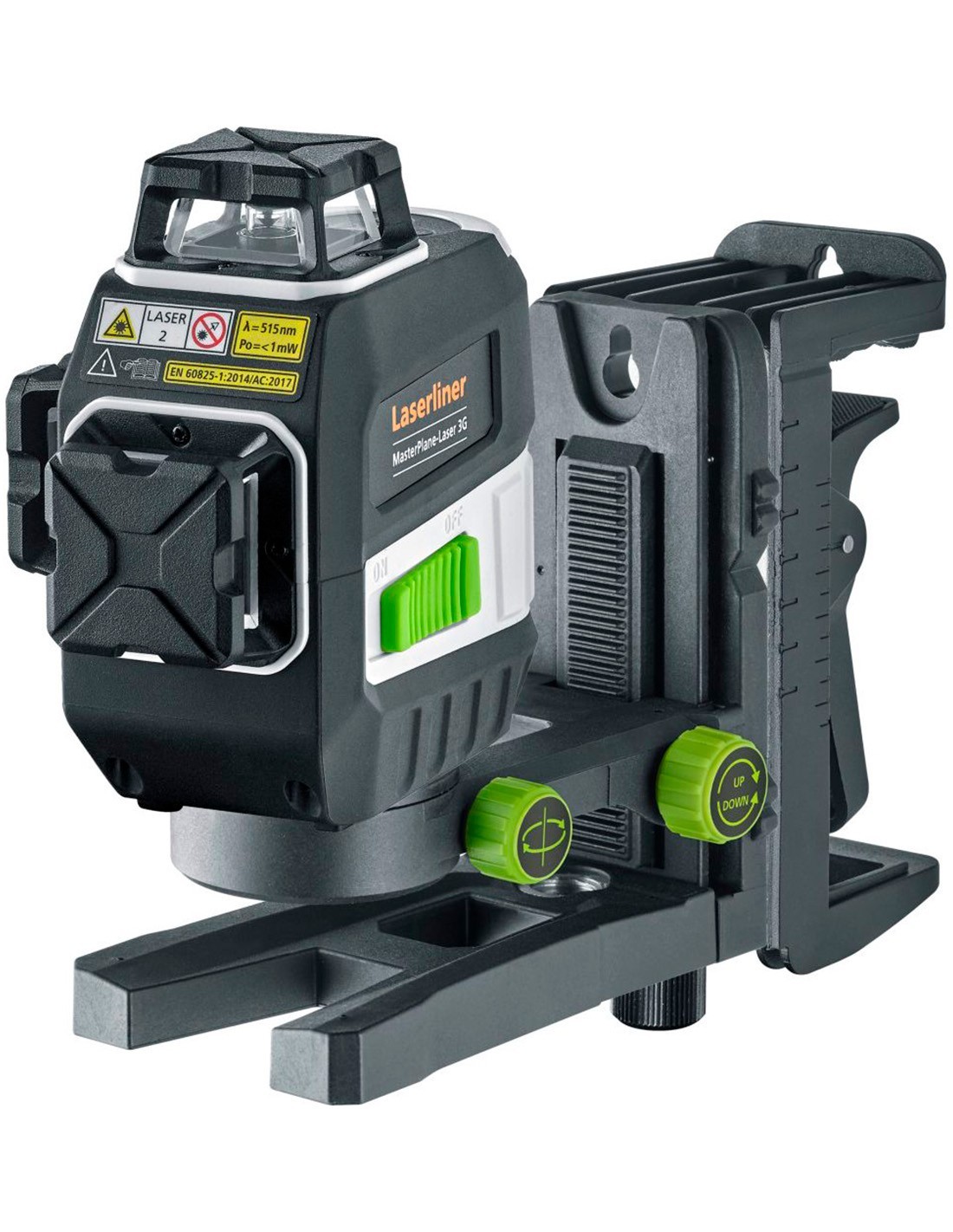

- - CrossGrip Plus magnetic clamp and wall bracket for hanging the device, attaching it to metal surfaces and clamping it to horizontal or vertical profiles.
- - MicroControl vernier adjustment mechanism for precise vertical alignment of the laser lines with edges and reference points.
- - Adjustment screw allows the bracket to be adapted to profiles of different thicknesses.
- - Easy alignment of slopes using the manual tilt function.
- - Plumb function for synchronous work between floors and ceilings.
- - Anti-Drift System with ADS-Tilt automatic shut-off prevents measurement errors caused by movement or external influences.
- - Individually switchable laser lines allow the projection to be adapted to each application.
- - Fast automatic alignment saves time during work.

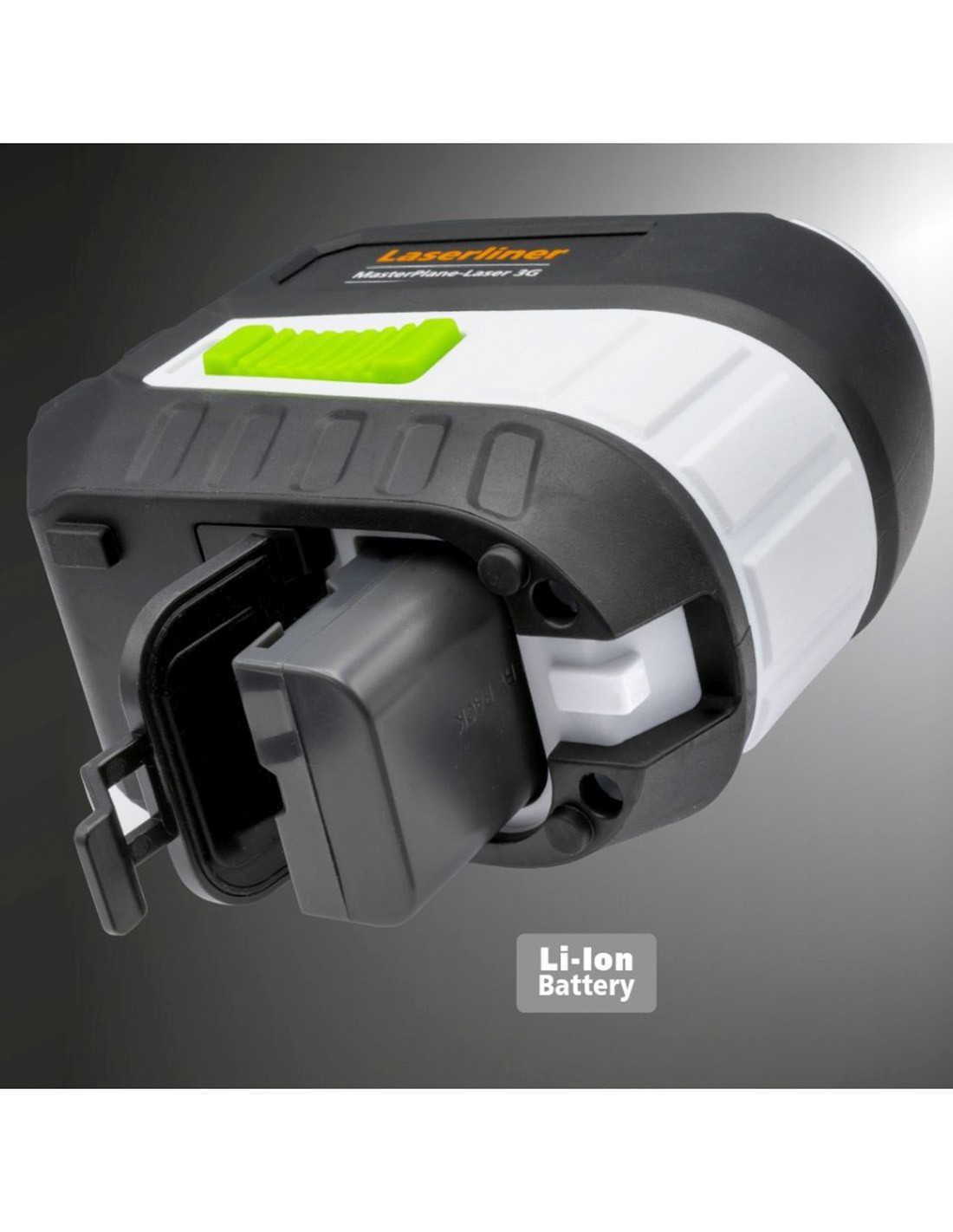

- - Long operating time thanks to the powerful HighCapacityPack with lithium-ion technology.
- - Rechargeable via USB-C using the supplied USB-A to USB-C cable.

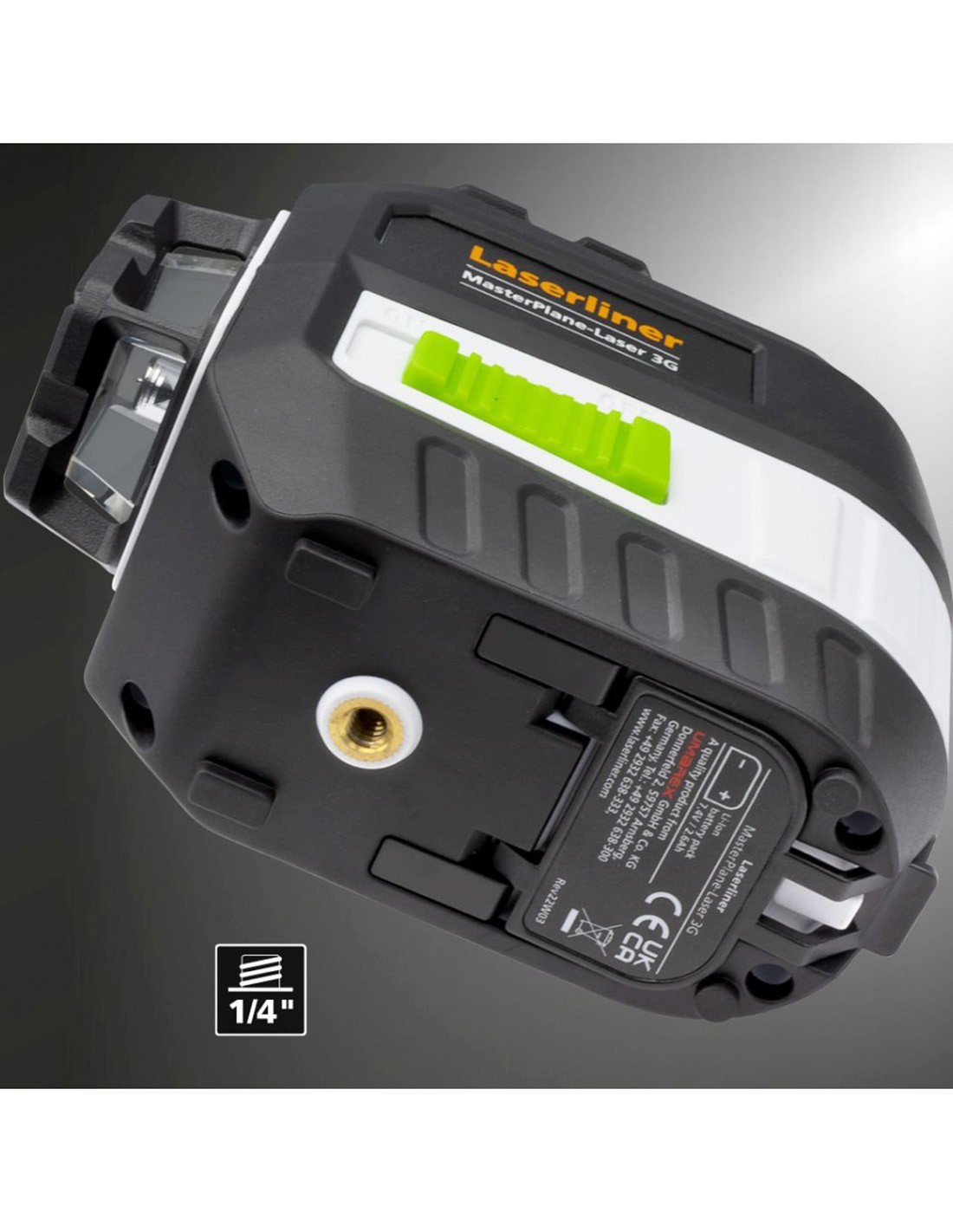

- - Integrated 1/4" thread on the laser and 5/8" thread on the bracket for use with construction and camera tripods.

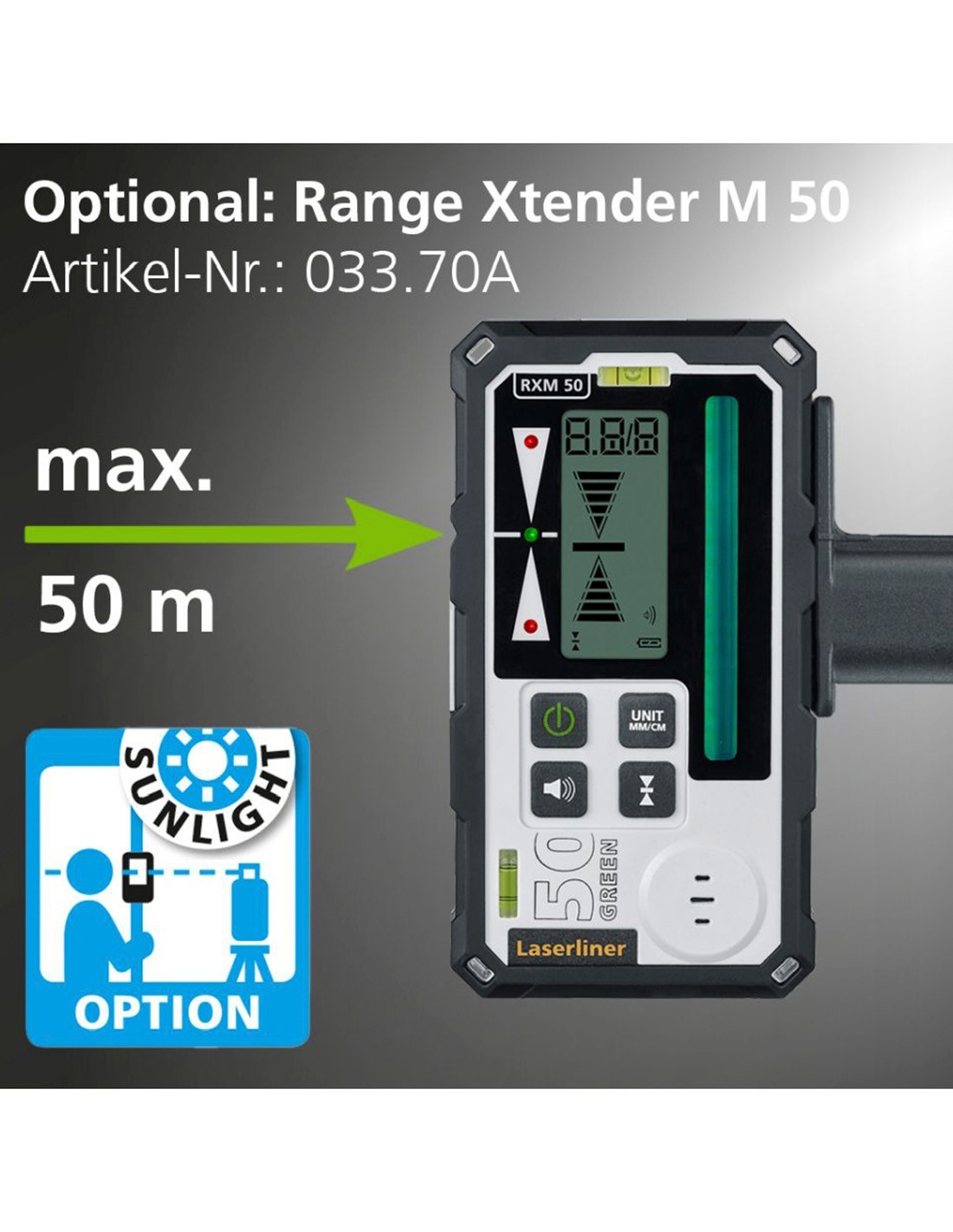

- - Integrated hand receiver mode for outdoor applications and long working ranges.

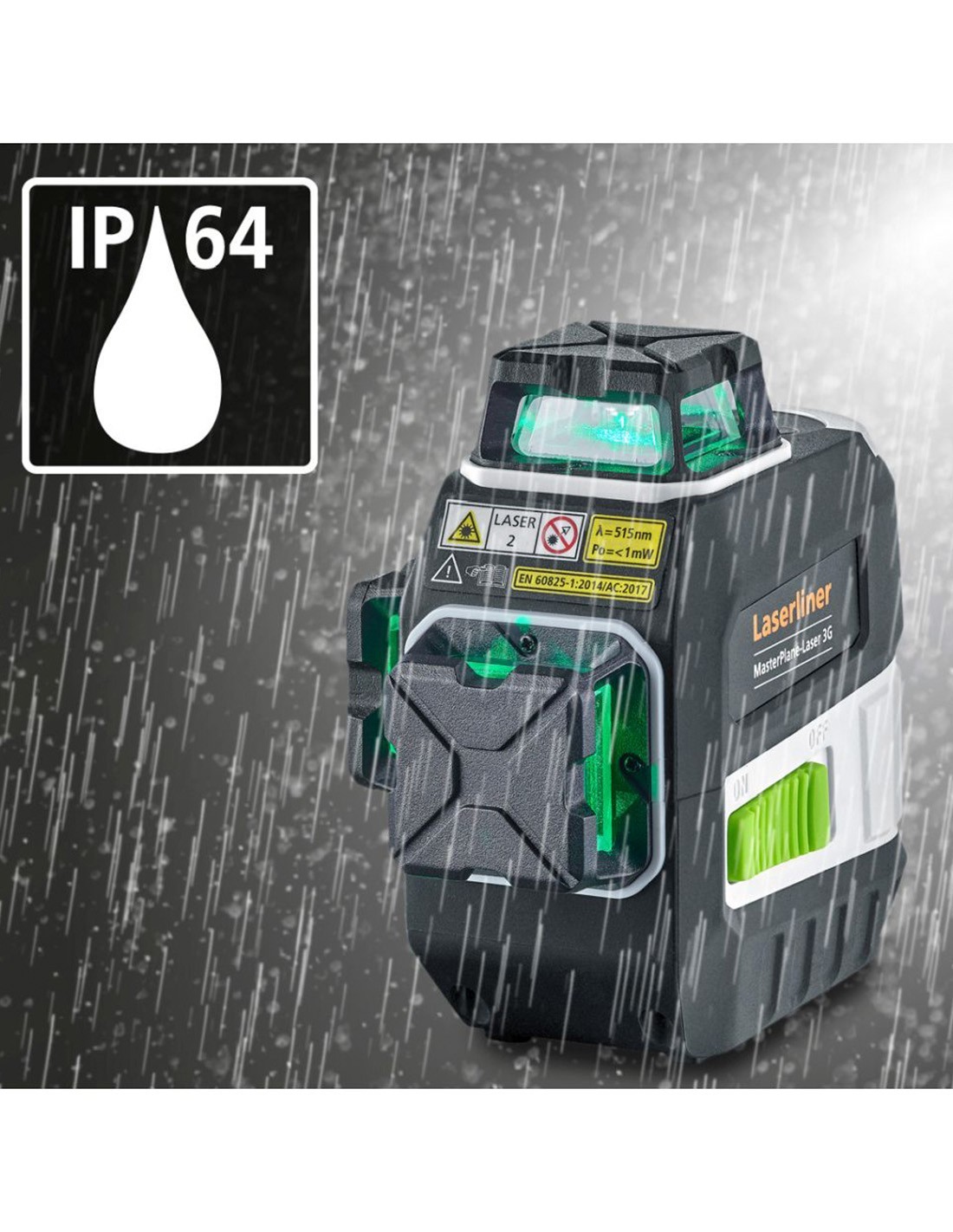

- - IP64 protection against dust and splashing water for demanding working conditions.
LASERLINER MasterPlane-Laser 3G Plus Green 3D Laser 031.400A
- Type: Green 3D laser
- Laser lines: 1 horizontal 360° circle and 2 vertical 360° circles
- Horizontal and vertical levelling: Automatic
- Manual tilt function: Yes
- Replaceable battery system: Yes
- Hand receiver mode: Yes
- Tilt warning function: Yes
- Anti-Drift System ADS: Yes
- Self-levelling range: ± 3.5° horizontal
- Accuracy: ± 0.2 mm/m
- Typical visibility: 55 m
- Operating range depending on room illumination: 50 m
- Working range with hand receiver: 60 m
- Laser wavelength: 515 nm
- Laser colour: Green
- Laser class: 2 / < 1 mW
- Levelling: Automatic
- MicroControl system: Yes
- Individually switchable laser lines: Yes
- Plumb function: Yes
- Laser tripod thread: 1/4"
- Bracket tripod thread: 5/8"
- Power supply: 7.4 V / 2.6 Ah / 19.24 Wh lithium-ion battery pack
- Power adapter: 5 V / DC / 2 A
- Operating time with 3 laser levels: approx. 5 h
- Operating time with 2 laser levels: approx. 10 h
- Operating time with 1 laser level: approx. 17 h
- Protection rating: IP64
- Operating conditions: 0 °C ... 50 °C
- Maximum operating humidity: 80 % RH, non-condensing
- Maximum operating altitude: 4000 m
- Storage conditions: -10 °C ... 70 °C
- Maximum storage humidity: 80 % RH
- Dimensions: 140 × 130 × 85 mm
- Weight: 636 g including battery pack
- Product line: BlackLine

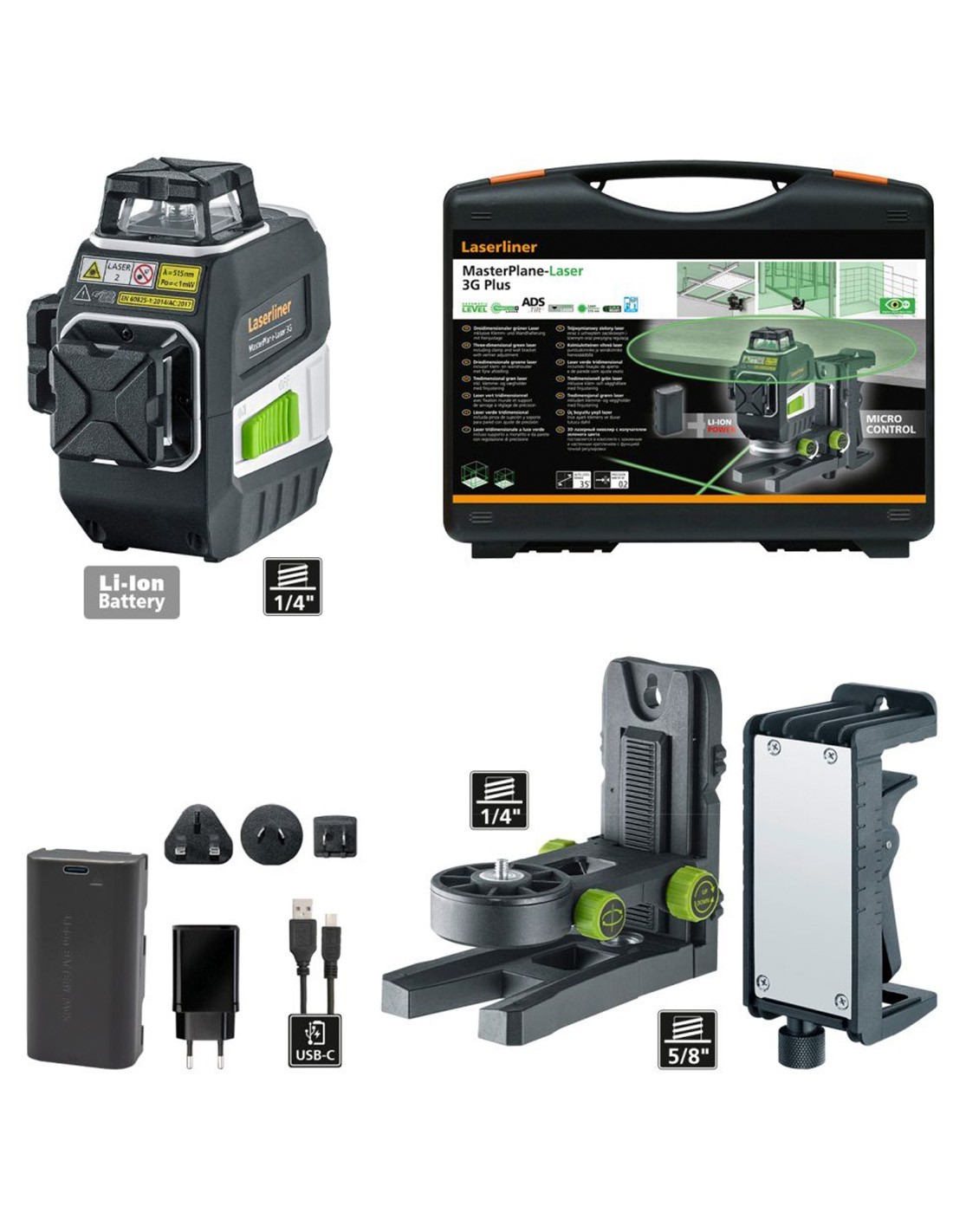

- LASERLINER MasterPlane-Laser 3G green 3D laser
- LASERLINER CrossGrip Plus magnetic clamp and wall bracket
- HighCapacityPack lithium-ion battery pack
- Mains adapter and charger with international adapter
- USB-C cable
- Carrying case
